GTX 10i TWO-WAY LINE ARRAY MODULE - TT Audio
GTX 10i
TWO-WAY LINE ARRAY MODULE
143 dB max SPL
4” neo compression driver
2 x 10” neo woofers, 3” v.c.
110° x 15° 4PATH waveguide
Designed to operate with XPS 16K amplifier (6 modules for each unit)
Durable and lightweight cabinet construction, polyurea coating
Heavy duty, powder coated, custom perforated front grille
IN / OUT screw terminal connectors, up to AWG 9 cable
INSTALLATION
NEW
INSTALLATION
GTX 10i
TWO-WAY LINE ARRAY MODULE
143 dB max SPL
4” neo compression driver
2 x 10” neo woofers, 3” v.c.
110° x 15° 4PATH waveguide
Designed to operate with XPS 16K amplifier (6 modules for each unit)
Durable and lightweight cabinet construction, polyurea coating
Heavy duty, powder coated, custom perforated front grille
IN / OUT screw terminal connectors, up to AWG 9 cable
NEW
The GTX 10 Installation Series is a two-way line array system suitable for medium to large-scale, high-demanding, install sound applications, both indoors and outdoors. Equipped with three best-in-class transducers, it offers excellent reproduction quality and optimized directivity in three coverage options enabling precise customization for any project. The integrated rigging hardware allows the system engineer to create arrays with 0° to 10° angles between modules, with 1° steps. Up to 16 modules can be suspended on a single fly-bar. Designed to operate with XPS 16K four-channel DSP amplifiers, each of which is able to manage up to 6 modules.
ADVANCED CORE TECHNOLOGY
Innovative design refinements enable our new True Resistive Waveguide to provide effective driver loading and precise pattern control for transducers. Designed with Finite Element Analysis and proven in RCF’s anechoic chambers, the 4PATH technology produces an ideal isophasic load with low distortion and coherent phase response, even at the lowest crossover frequencies.

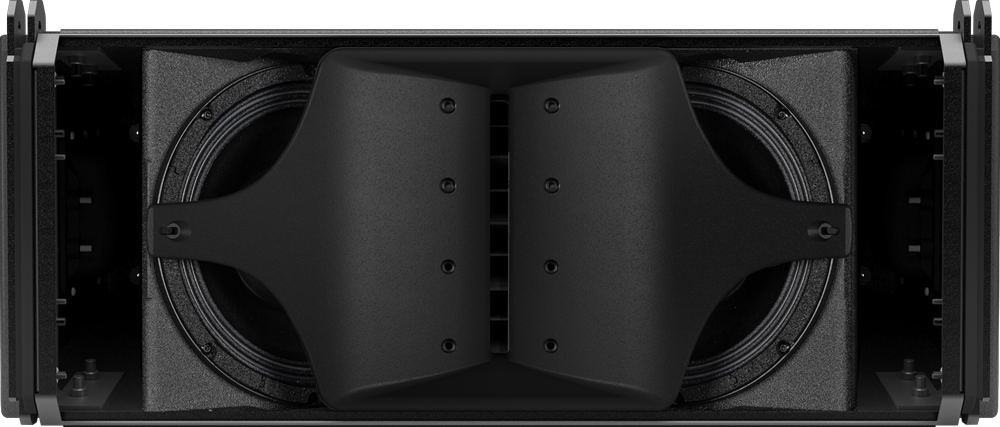

THE POWER OF SYMMETRY
The symmetrical enclosure design and component topology produce consistent coverage from left to right. Symmetrical component positioning and special DSP crossover filtering provide constant directivity and perfect continuity of the hemicylindrical wave directivity without lobes and discontinuities. Frequency modulations are avoided by the optimized active crossover design.

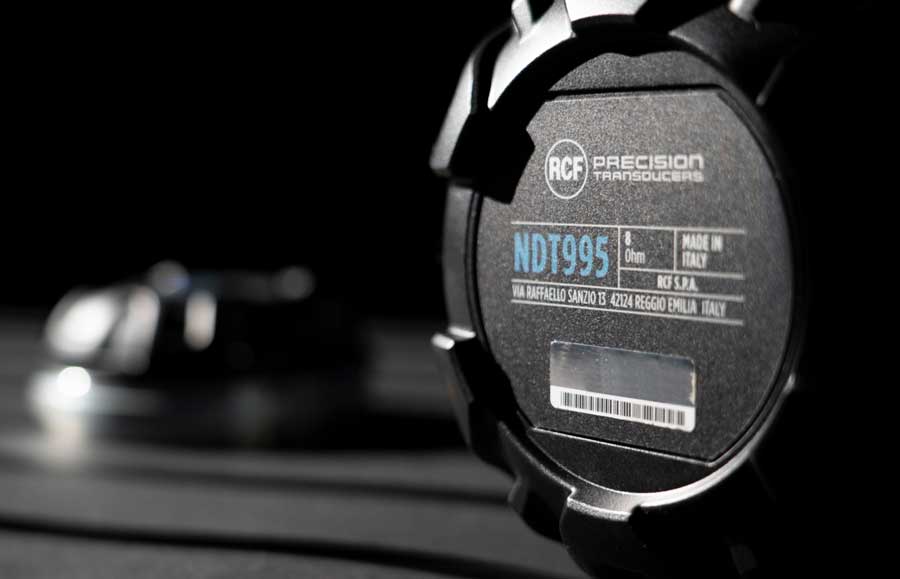

HIGH FREQUENCY
The 4-inch titanium dome compression drivers, equipped with high-current neodymium magnets, are designed to fully leverage the remarkable capabilities of the TRW-4PATH waveguide. As a result, the GTX10i 110° x 15° coverage is finely matched with the output of its woofers for perfect phase coherence.

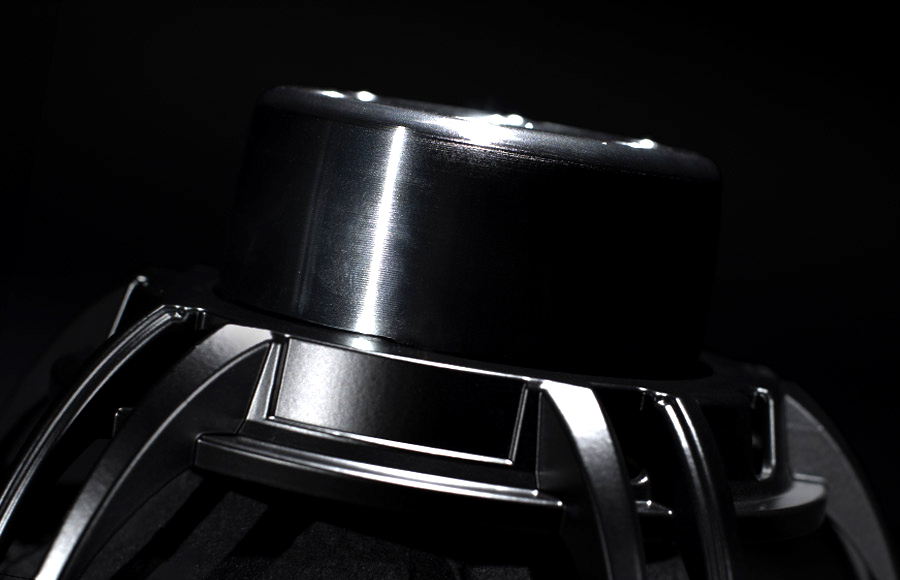

LOW FREQUENCY
The low distortion, high output design of the two 10” HyperVented woofers ensures superb fidelity and high dynamic range. With 3.0” inside-outside voice coils and high flux density neodymium magnets, the fast, high-stiffness motor section provides high impact low-frequency reproduction.
ENCLOSURE AND RIGGING HARDWARE
The sturdy, weather-resistant birch multi-ply enclosure features optimized hardware for safety and adaptability, including a rear mechanism for angle selection. High-strength Strenx steel rigging hardware ensures secure deployment of up to 16 modules in tension or compression mode. Power connection is provided via a watertight screw terminal connection panel designed for cables up to AWG 9. The powder-coated protective grille includes a protective foam layer. For enhanced weather resistance, the IP version offers an additional acoustically transparent, water-repellent fabric.
Part number
13000864
GTX 10i
Black
13000919
GTX 10i IP
Black
Acoustical specifications
Frequency Response (-10dB)
42 Hz ÷ 20000 Hz
Max SPL @ 1m
143 dB
Horizontal coverage angle
110°
Vertical coverage angle
15°
Power section
Amplification
Bi-Amp
Nominal Impedance LF
8 ohm
Nominal Impedance HF
8 ohm
Recommended Amplifiers
XPS 16K, XPS 16KD
Transducers
Compression Driver
1 x 1.4'' neo, 4.0'' v.c
Woofer
2 x 10'' neo, 3.0'' v.c
Input/Output section
Input connectors
Screw Terminals
Output connectors
Screw Terminals
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Birch plywood
Hardware
Array fittings
Grille
Steel with clothing
Color
Black
Size / Weight
Height
337 mm / 13.27 inches
Width
750 mm / 29.53 inches
Depth
482.3 mm / 18.99 inches
Weight
32 kg / 70.55 lbs
Shipping information
Package Height
539 mm / 21.22 inches
Package Width
787 mm / 30.98 inches
Package Depth
382 mm / 15.04 inches
Package Weight
37 kg / 81.57 lbs
